EAW-SB210 BLACK

SKU:
2071484-90
Current Stock:

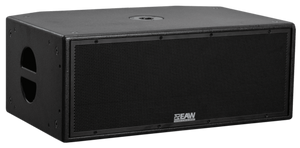

EAW SB210 Black

Dual 10-inch Subwoofer

EAW’s dual 10″ SB210 subwoofer is the latest addition to the revered SB Series product line, offering low frequency support when space is limited.

Overview

The SB210 is the latest addition to the revered
SB Series product line, offering low frequency
support when space is limited. SB210 is a
direct radiating dual 10" subwoofer with
unique driver mounting to maximize the
cone area. This allows for integration of
an ultra low turbulence port design to
maximize the front area, resulting in a
powerful acoustical performance despite
its smaller size. This means low frequency
no longer needs to be sacrificed for space
restrictions.
SB210 is meant to be used for an
abundance of install and production
applications including restaurants, bars,
hotels, corporate events, performing art

Description

Being a dual 10″ subwoofer, SB210 is the smallest in size of the entire SB series catalog. Finding the right balance between size and performance was no easy task, but we believe the challenge has been met. This means low frequency no longer needs to be sacrificed for space restrictions. SB210 can be suspended, easily fits under most stages, and can hide in corners or against walls of a venue inconspicuously.

  • Ultra low turbulence port design for superior output
  • Integrated M10 mounting, and M20 pole mount
  • Black, White & WP model available
  • Companion UXA4403 amp available
  • Pairs seemlessly with MKC, MK, and MKD Series products
  • Barrier strip and NL4 connections both available on input plate
  • Routed handles on both sides of product for easy transport
  • M20 Pole Mount

Specifications

Frequency Response​             35Hz-150Hz

Max SPL                               Whole Space: 128dB
                                           Half Space: 134dB

Operating Mode                    VLF, DSP w/ DynO

Subsystem                            2x10in cone, 2.5in VC

Nominal Beamwidth              Horizontal 360°
                                           Vertical 360°

Power Handing                      500 Watts @ 4 ohms

Conncections                        2x Neutrik NL4, 2-pin barrier strip

Dimensions                          12 x 30 x 19.7in (305 x 762 x 501mm

Weight                                 67 lbs. (30.4kg)
